LED purchase guide preferred

Stadium LED display

Stadium LED display   global service hotline: 400-888-2609!(please say what you have seen on the official website of derensel when you make a call for customized purchasing. Thank you.)
  • Plan to introduce

    On the basis of fully using the world‘s leading core technology and accurately understanding the needs of customers, deroncel provides professional advertising and information release solutions for the mass sports events, including the LED display around the stadium, the sports video wall, the central suspension LED screen and the LED ribbon display.With a high refresh rate and a stable and reliable system, drenser products can provide fans and athletes with unique experiences that impress them.



    Program features

    1. World-class sports competition standards

    Deronser sports LED display is widely used in world class sports events, such as World Cup, European champions league, FIS alpine skiing World Cup, etc.Drexel LED display has become the standard for world-class sporting events.

    2. Virtual relay technology (SP series)

    "Multi-screen, real-time AD broadcasting" means that viewers in different regions can see different AD content on the same screen.The technology will revolutionize the sports advertising business model.

    3. People-oriented design

    DE embellish self professional sports events LED display product design adopts advanced rubber plastic mask and software patent design can be 360 ° to protect players from injury, highlight the people-oriented design concept, the escort for major sports events.

    4. Low operating costs and maintenance costs

    Deroncel sports LED series products have been "CCC", "CE", "RoHS", "TUV", "ETL", "FCC" and other domestic and foreign authoritative certification.With excellent product performance and excellent overall service, the customer‘s maintenance and operation costs are saved.

    Successful cases

     The euro 2016

    2016 tour DE France LED outdoor advertising screenThe 2016 tour DE France
     Large LED screens outside the fans park of the 2014 World Cup in BrazilWorld Cup fans park in Brazil 2014

    Brazil 2014 World Cup stadium sports screenThe 2014 World Cup in Brazil

     The 2017 Russia federation cup outdoor sports screenRussia federation cup 2017

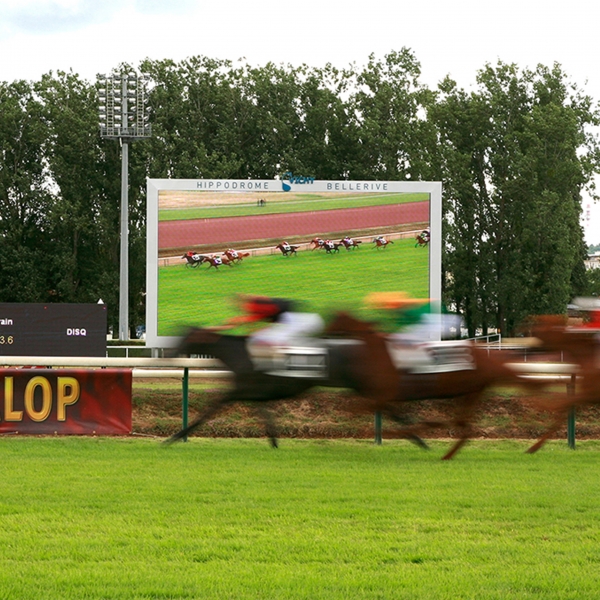

     LED screen for 2011 outdoor race at Vichy racecourse, FranceVichy racecourse, France 2011


    系统架构

    LED sports field screen solution system architecture

    1. Quadrate ceiling screen series

    2. Circle screen series

    3. Scoring card series

    4. Front maintenance of the strip screen series

    5. Venue live screen series


    Product features

    1. Surrounding ring screen

    < body adopts unique Angle adjustable design, our stadium screen can according to different requirements to adjust the Angle of box body (75 ° ~ 90 °), let all the audience can see the content of the broadcast.

    "The field screen is made of soft facemask and soft material covering the top, which can protect the led light without any obvious damage caused by the collision of athletes.

    < adopt efficient optical fiber transmission system, which can effectively reduce the signal delay caused by the transmission distance of football field, and ensure the consistency of picture play.

    < with dual network hot backup function, two computers control one screen at the same time. When one computer has a problem, the other computer will take over automatically to ensure the normal operation of the screen.

    < good waterproof effect, with IP65 protection class, so that the display can continue to work for you in rainy weather.

    < equipped with proprietary field player software, you can easily manage scores, program playback, advertising broadcast and program list editing.

    < with a refresh rate of up to 4200Hz, it meets the need of dynamic shooting on the sports field and effectively avoids the flicker phenomenon during shooting.

    < waterproof class up to IP65, can adapt to all kinds of harsh environment.

    2. Middle ceiling screen of square body

    < box 360 degree seamless stitching, 360 degree hd Vidoe playing, wonderful moments of close-up, so that the entire stadium audience can clearly and completely enjoy the entire game.

    "Drensel self-produced three-in-one black case SMD lamp, which increases the contrast of LED display to 16bit.

    < multiple point spacing options such as 3mm, 5mm, 6mm, 7.82mm, 8mm, 10mm, 12mm and 16mm

    "The carefully designed PCB circuit board designed by many senior research and development personnel of delunsel, with the low power, the display brightness reaches 2500CD/M squared, which solves the problem of low light distance and high brightness heat dissipation of indoor LED display.

    < used zhongqing video processing system to increase the refresh rate of the display screen to 4200Hz.

    < domestic and foreign UL, CE, ETL, ROSH, CCC and other multi-certification, to ensure product quality, enjoy at least 2 years of warranty service.

    3. Electronic LED scoring board and live LED display

    < indoor 2500CD/M squared, outdoor 6000CD/M squared high brightness display, even in the daytime will not affect the VIDEO quality.

    < the earliest design of SMD LED display screen with small point spacing of 6mm, 8mm and 10mm makes the Video playing on the display screen more delicate and clear.

    < high contrast (16bit), high color value (281 trillion), make the screen more colorful.

    Advanced box results design for easy display installation and maintenance.

    4. Front maintenance LED display

    Box lightweight, easy to install and load

    < high brightness, > 5000cd/m squared, high refresh rate

    Production meets the corresponding rules and requirements of the international sports federation.

    < multiple tilt angles of the display screen are installed with the system configuration, which can fully show the live audience and media play.

    < refresh rate up to 4200 hz, very suitable for live event broadcast.

    < applicable row: 2G bandwidth, no additional controller is required under unconventional distance conditions

    < EMC, UL, CE, ETL, ROSH, CCC certification


    Drenser stadium solutions advantages

    1. Product advantages

    The maximum refresh rate of 1> can reach 4200Hz, perfect for TV broadcast and camera shooting;

    2. > fact play sports events, 5 frames losing phenomenon;

    3> wide viewing Angle, high contrast design, ensure each audience to enjoy the most perfect match.

    2. Experience advantage

    1> global solution for over 45 stadiums;

    > numerous world and regional record makers;

    3. Important classic cases of > spread all over the world;

    4. > is familiar with the characteristics of different competitions and the specific needs of regional markets.

    3. Service advantages

    1. > pre-sale professional consultation and scheme design;

    2. Site layout and system integration of >;

    24 hours technical support after sale of 3>.

    4. Networking, end-to-end IP solutions, full hd.

    5. Playing field function

    1> real-time video superposition and splicing, multiple Frame;

    2. Real-time update of > dynamic performance data;

    3. Arbitrary switch between video and planned contents in real time >;

    4> real-time broadcast content monitoring.

  • GP8-4S户外 GP10-2S户外 GP16-2S户外
    物理点间距8  物理点间距10  物理点间距16
    单元板重量0.31 单元板重量 0.43 kg 单元板重量 0.62 kg
    物理密度15625/ 物理密度10000/ 物理密度3906/
    发光点颜色 1R1G1B  发光点颜色 1R1G1B  发光点颜色 1R1G1B
    单元板尺寸256X128  单元板尺寸320X160  单元板尺寸256X256
    单元板分辨率 32*16=512DOTS 单元板分辨率 32*16=512 DOTS 单元板分辨率 16*16=256 DOTS
    箱体面积0.819200m²  箱体面积0.9216m² 箱体面积0.9916m²
    箱体分辨率160*80  箱体分辨率96*96 箱体分辨率64*64
    单元箱体尺寸1280×640×98.45 单元箱体尺寸960×960(㎜) 单元箱体尺寸1024×1024(㎜)
    铁箱体重量21.67KG±0.05KG 箱体重量20KG±0.05KG 箱体重量23KG±0.05KG
    主要技术参数 主要技术参数 主要技术参数
    可视角度水平≧160°可选 可视角度水平≧160°可选 可视角度水平±140°可选
    垂直≥160°可选 垂直≥160°可选 垂直≥±120°可选
    最佳视距8m90m 最佳视距10m100m 最佳视距16m~300m
    最大功耗<1200w/ 最大功耗<1600w/ 最大功耗<<800W/
    平均功耗<600W/ 平均功耗<800W/ 平均功耗<350W/
    驱动方式 1/4扫描 驱动方式 1/2扫描或1/4 静态
    白平衡亮度 6300cd/ 白平衡亮度 7500cd/ 白平衡亮度 7500cd/
    亮度感应自动调节 亮度感应自动调节 亮度感应自动调节
    显示卡 DVI显卡 显示卡 DVI显卡 显示卡 DVI显卡
    刷新频率≧360Hz 刷新频率≧300Hz 刷新频率≥1920Hz
    亮度调节方式 亮度调节方式 亮度调节方式
    控制方式:同步控制 控制方式:同步控制 控制方式:同步控制
    工作电压(交流) 工作电压(交流) 工作电压(交流)
    换幁频率 60Hz 换幁频率 60Hz 换幁频率 60Hz
    16级可调 16级可调 16级可调
    软件手动调节:100级可调100 软件手动调节:100级可调100 软件手动调节:100级可调100
    计算机操作系统 计算机操作系统 计算机操作系统
    WIN98WINXPWIN2000,etc WIN98WINXPWIN2000,etc WIN98WINXPWIN2000,etc
    视屏信号 视屏信号 视屏信号
    RFS-VideoRGBRGBHVYUVYCCOMPOSITION RFS-VideoRGBRGBHVYUVYCCOMPOSITION RFS-VideoRGBRGBHVYUVYCCOMPOSITION
    控制系统 控制系统 控制系统
    PCTV卡(可选optional+DVI显卡+主控卡+光纤传输(可选optional PCTV卡(可选optional+DVI显卡+主控卡+光纤传输(可选optional PCTV卡(可选optional+DVI显卡+主控卡+光纤传输(可选optional
    平均无故障时间 5000小时 平均无故障时间 5000小时 平均无故障时间 5000小时
    项目分类 PH8-4S 项目分类 PH10-2S 项目分类 PH16-静态
    像素失控率  0.0002 像素失控率  0.0002 像素失控率  0.0002
    LED封装方式3535 LED封装方式3535 LED封装方式3535
    寿命 75000100000小时 寿命 75000100000小时 寿命 75000100000小时
    封装形式 三合一 封装形式 三合一 封装形式 三合一
    德润赛尔温馨提示:以上产品原则上属定制产品,参数仅供参考,针对您的特定项目请联系技术详询——全球定制热线400-888-2609 !
